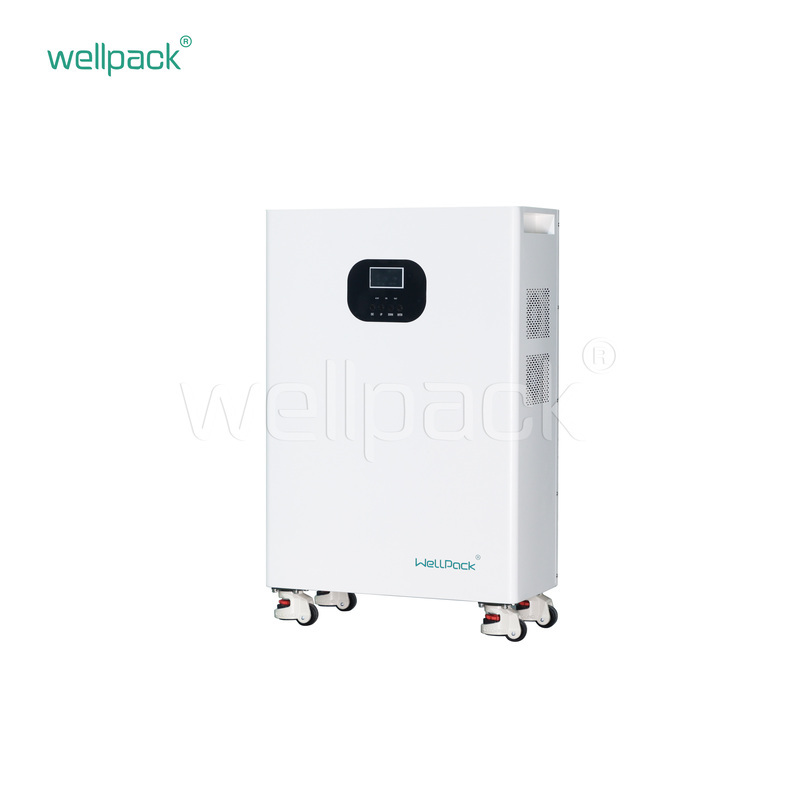

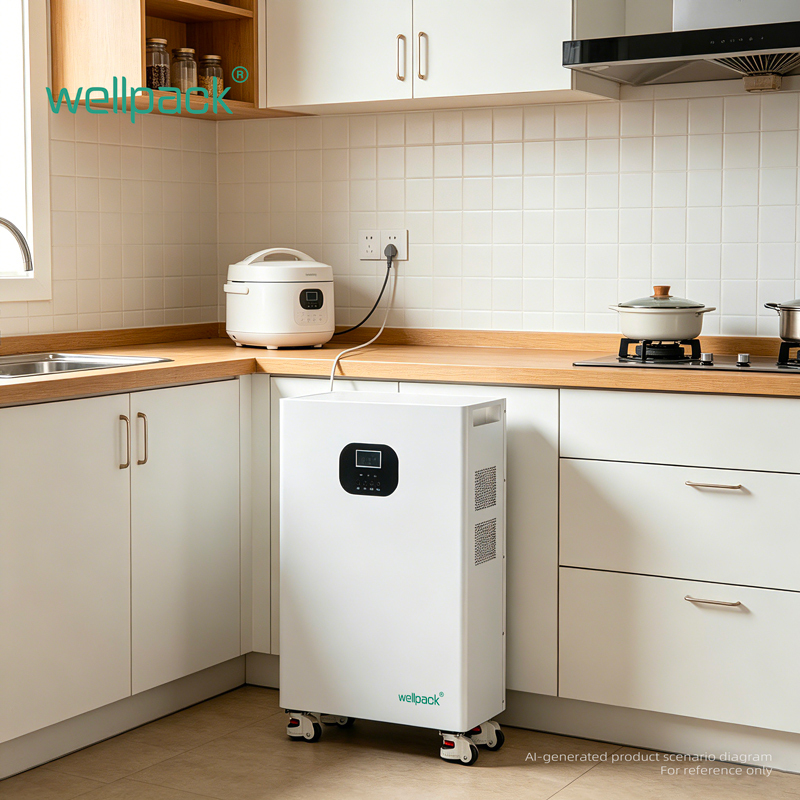

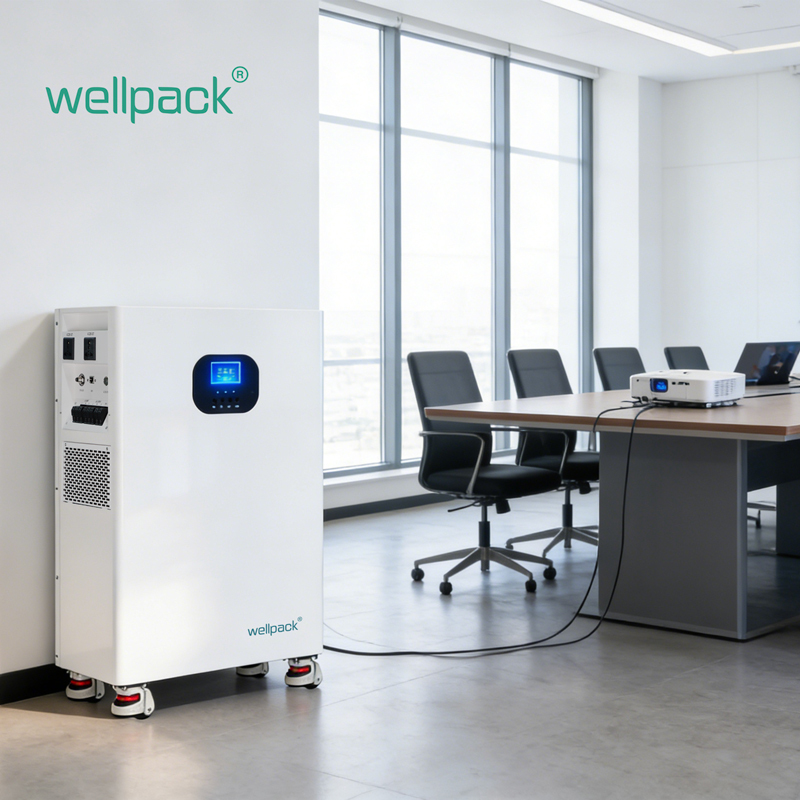

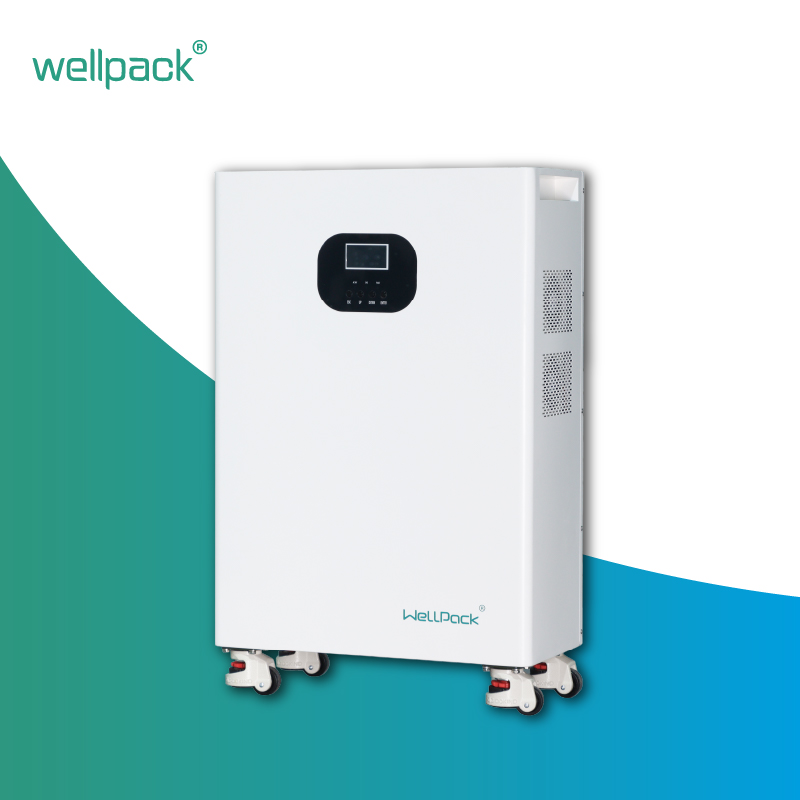

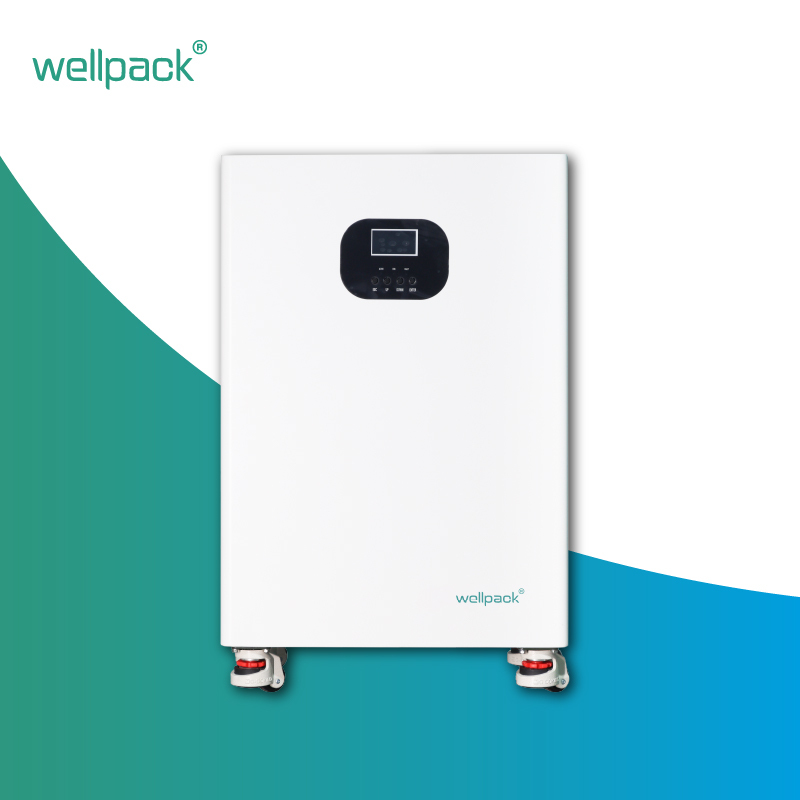

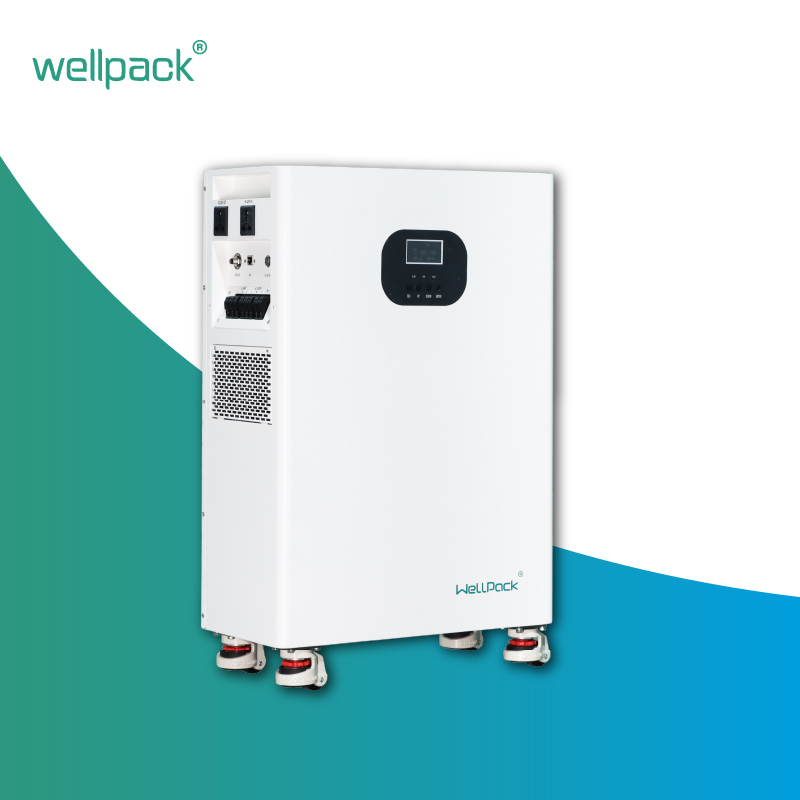

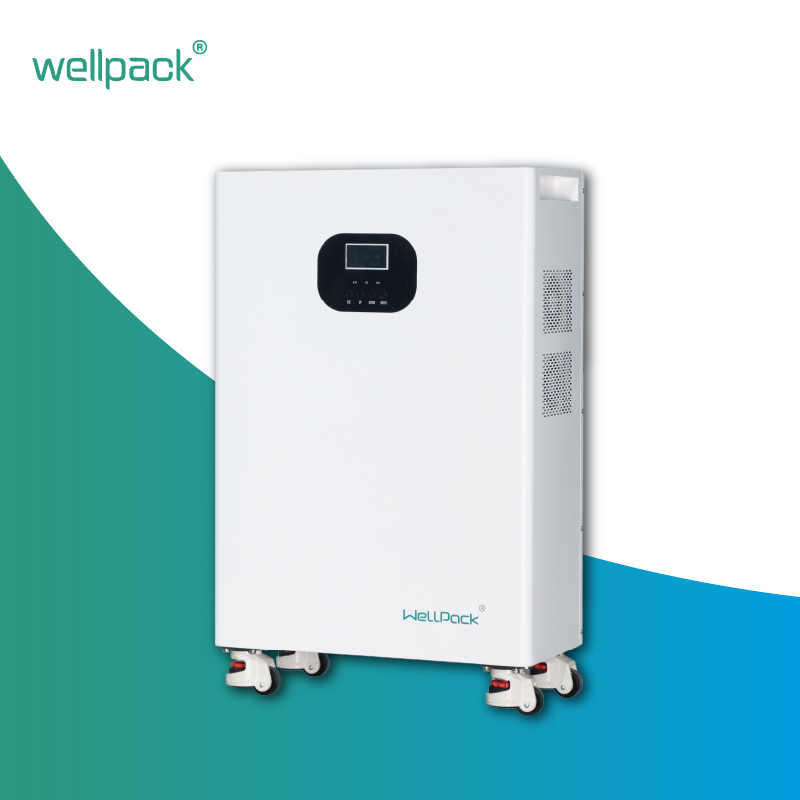

Système intégré de stockage d'énergie domestique WPT05-01
Le système de stockage d'énergie domestique intégré Wellpack est un système tout-en-un doté de cellules LiFePO4 haute performance et d'un courant de décharge maximal de 150 A, garantissant une alimentation stable pour les appareils à forte consommation. Disponible en capacités de 5, 10 et 16 kWh, il comprend un écran HD et une application mobile pour un contrôle à distance, une surveillance en temps réel et une utilisation simplifiée. Le système de gestion technique du bâtiment (GTB) intelligent prend en charge les protocoles CAN et RS485 pour une sécurité renforcée, tandis que ses roulettes pivotantes assurent un déplacement aisé, idéal pour la maison ou le bureau.
- information
27A27A18A
Courant de charge PV max.120 A120 A150ADimensions (L*l*H)480*235*750 mm530*250*1030 mm
660*250*1205 mm
The intelligent battery management system provides comprehensive protection against overcharge, over-discharge, and other risks, ensuring long-term reliability and safety.
Key Advantages:
All-in-one integrated design with built-in inverter
High-safety LiFePO₄ battery cells
Multiple capacities: 5.12kWh / 10.4kWh / 16.08kWh
HD display + remote APP control for convenient monitoring
Smart BMS with CAN/RS485 communication
Swivel wheels for effortless mobility

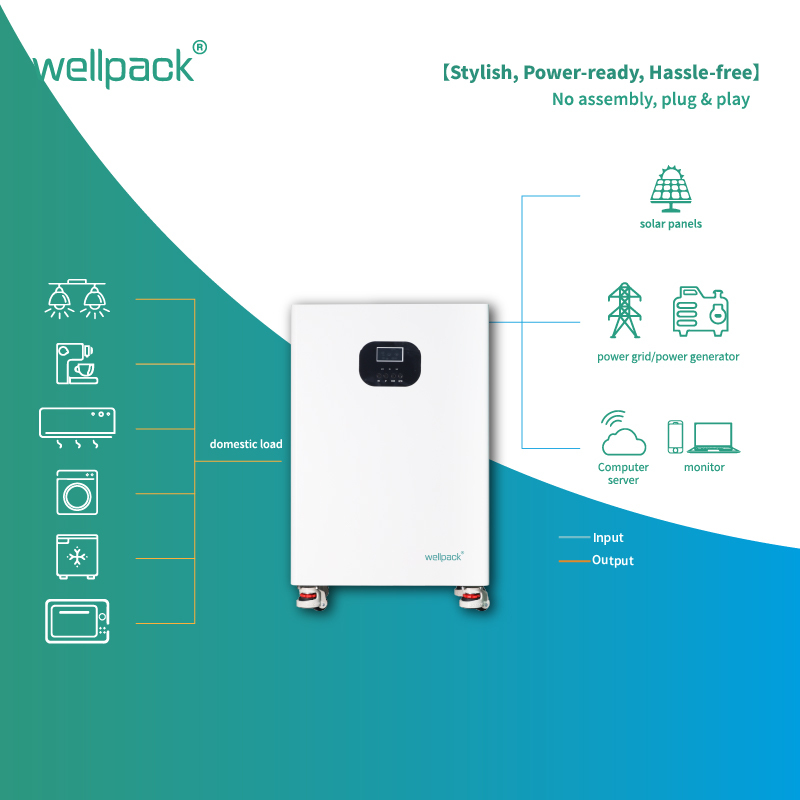

Supports solar PV, grid, and hybrid operation
Pure sine wave output – ideal for sensitive electronics and high-power loads
Perfect for home energy storage, solar self-consumption, and backup power
Whether for daily energy management, maximizing solar usage, or providing uninterrupted backup power during outages, the WPT05-01 offers a smart, efficient, and user-friendly energy solution for modern homes and small offices.
Applications: Household energy storage, solar PV systems, residential backup power, office lighting and appliances.
We welcome OEM/ODM inquiries. Please feel free to contact us – we will reply within 24 hours!
| Main Technical Parameters of LiFePO4 Battery Pack | |||
|---|---|---|---|
| Item | WPH05I | WPH10I | WPH16I |
| Battery type | Lithium battery | ||
| Battery material | LiFePO₄ | ||
| Nominal voltage | 51.2V | ||
| Voltage range | 48~58.4V | 48~57.6V | 48~57.6V |
| Limited charging voltage | 58.4V | 57.6V | 57.6V |
| Battery capacity | 51.2V-100Ah(5.12kWh) | 51.2V-206Ah(10.4kWh) | 51.2V-314Ah(16.08kWh) |
| Charging voltage | 58.4V±0.5V | 57.6V±0.5V | 57.6V±0.5V |
| Max. charging current | 100A | 150A | 200A |
| Balancing current | 60-80mA | 60-150mA | 60-150mA |
| Optimal charging temperature | 0℃~45℃ | ||
| Overcharging protection voltage | 58.4V±0.5V | ||
| Discharge cut-off protection | 40V±0.5V | ||
| Max. discharge current | 100A | 150A | 200A |
| Charging & discharge port | Same port | ||
| Inverter output | 5KW | 6.2KW | 11KW |
| Waveform | Pure sine wave | ||
| AC voltage output | 220/230/240VAC(L/N/PE Single phase) | ||
| Rated frequency | 50HZ/60HZ | ||
| Grid AC input voltage | 100-280VAC | ||
| Max. grid charging current | 100A | 100A | 150A |
| Grid input frequency | 50HZ/60HZ | ||
| Max. PV inout power | 6200W | 6200W | 2×5500W |
| PV input voltage | 100-500VDC | ||
| Optimal Vmp Operating range | 300-400Vdc | ||
| Max. rated PV input current | 27A | 27A | 18A |
| Max. PV charging current | 120A | 120A | 150A |
| Dimensions(L*W*H) | 480*235*750mm | 530*250*1030mm | 660*250*1205mm |
